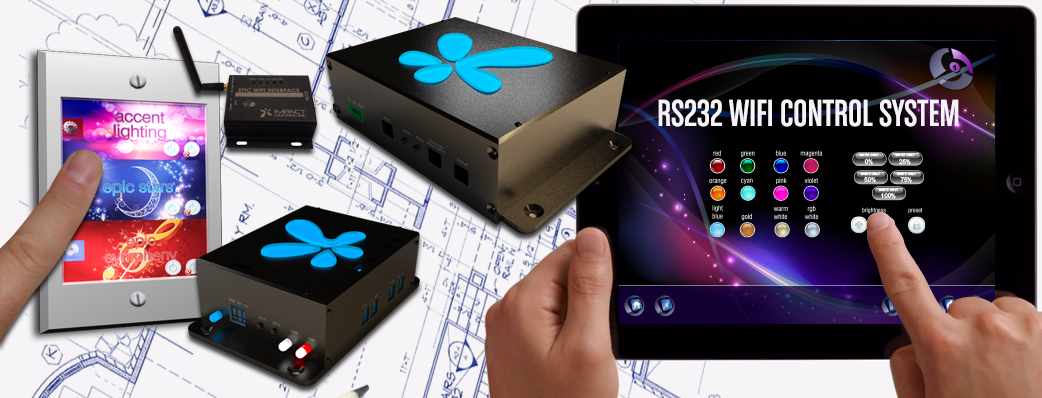

RS232 Serial RGB LED WIFI CONTROL SYSTEM

Unleash the True Power of RS232 WIFI LIGHTING SYSTEM

The RS232 Wifi Lighting System is a family of high power capable led controller products designed to connect almost any LED lighting to a network in a matter of minutes. Includes a choice of wireless WiFi or wired TCP/IP, serial RS232 controller and the EPIC’s Symphony music and sound module. The innovative design of the RS232 WiFi Lighting Control System allows for easy and flexible integration into any network control solution. The RS232 WiFi Lighting Control System is a simple capable wired (EP-WLS-ETH) or wireless (EP-WLS-WIFI) conduit between you and your device over a network. This is instant network-enabling at its best, delivering the power of choice at a cost-effective price.



Specification | Wiring Diagram | Symphony Wiring Diagram | Sell Sheet



Software Installation Video Instruction and LED Wifi Kit Installation:



THE MOST POWERFUL Serial LED LIGHTING CONTROLLERS ON THE MARKET TODAY

The EP-RS232-ADVANCED and EP-RS232-PRO Serial RGB LED Controllers are a highly professional and intelligent system to control common anode LED lighting or incadescent light bulbs via 2-way RS232 serial commands. The EP-RS232-ADVANCED and EP-RS232-PRO provides 4 high current channels to create light scenes. Total scene control is accomplished by interfacing with a computer control system through any RS232 serial port. This innovative serial controller is an ideal solution for your stand-alone and integrated home lighting systems.

EP-RS232-ADVANCED  Features

Compare

  • 4 high current channels with independent control - The highest in the industry. RGB+White.
  • Suitable for common anode Serial RGB LED strips, LEDs and incandescent bulbs.
  • Standalone mode with 8 preprogrammed light sequences.
  • Custom user-editable sequence via RS232.
  • Wide-range effect speed adjust.
  • Wide-range of external input acessoroes such IPAD, relays, and wireless transmitter.
  • Memory for last selected sequence and user-editable sequence.
  • Serial TTL interface to control from your microcontroller or PC - interface sold seperately.
  • Addressable. Multiple modules can be connected with independent control for each module.
  • Small form factor.
  • PWM of 480 Hz to deliver smooth dimming and a wide range of color spectrum of Serial RGB LED light fixtures.
  • Override memory feature that allows last program to continue even in an event whereby the RS232 serial connection is disruppted for any reason.
  • Reverse polarity protection.
  • Work independantly or integrated into a whole-house control system.

SPECIFICATION

Click here to view the EP-RS232-ADV controller's powerful capabilities.

MANUAL

Download the EP-RS232-ADV documentation.

SELL SHEET

Download the EP-RS232-ADV product manual.

BROCHURE

Click here to view the EP-RS232-ADV.

EP-RS232-PRO  Features

    Compare

  • 4 high current channels with independent control - The highest in the industry. RGB+White.
  • Suitable for common anode Serial RGB LED strips, LEDs and incandescent bulbs.
  • Standalone mode with 8 preprogrammed light sequences.
  • Custom user-editable sequence via RS232 serial connection.
  • Wide-range effect speed adjust.
  • Wide-range of external input acessoroes such IPAD, relays, and wireless transmitter.
  • Memory for last selected sequence and user-editable sequence.
  • Addressable. Multiple modules can be connected with independent control for each module.
  • Small form factor.
  • PWM of 480 Hz to deliver smooth dimming and a wide range of color spectrum of LED light fixtures.
  • Override memory feature that allows last program to continue even in an event whereby the RS232 is disruppted for any reason.
  • Reverse polarity protection.

SPECIFICATION

Click here to view the EP-RS232-PRO controller's powerful capabilities.

MANUAL

Download the EP-RS-232-PRO documentation.

SELL SHEET

Download the EP-RS232-PRO product manual.

BROCHURE

Click here to view the EP-RS232-PRO controller's powerful capabilities.
